Solar Power System: An A–Z Engineering Breakdown

☀️ Solar Power System: An A–Z Engineering Breakdown

Solar energy systems are far more than just panels on a roof. A modern solar photovoltaic (PV) installation is a complete electrical power system designed for efficiency, reliability, safety, and optimal energy generation.

Let’s explore the A–Z of Solar Power Engineering 👇

A — Array
A solar array is a group of interconnected solar modules arranged in series and parallel combinations to achieve the required system voltage and current levels for the inverter.

B — Backsheet
The backsheet is the rear protective layer of a solar module, providing electrical insulation, UV resistance, and protection against moisture and environmental damage.

C — Charge Controller
Used mainly in off-grid and hybrid systems, a charge controller regulates power flow from panels to batteries, preventing overcharging and deep discharge.
Types: PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking).

D — DC Power
Solar panels naturally generate Direct Current (DC) electricity through the photovoltaic effect.

E — Efficiency
Solar module efficiency is defined as:
Electrical Output Power ÷ Incident Solar Power
It is influenced by temperature, solar irradiance, module design, and cell technology.

F — Frame
Typically made of anodized aluminum, the module frame provides structural strength, mechanical protection, and secure mounting capability.

G — Grid
The solar system may operate in different configurations:
• On-Grid – Connected to the utility network
• Off-Grid – Independent system with batteries
• Hybrid – Combination of grid connection and energy storage

H — Hot Spot
A hot spot occurs when a portion of a solar module overheats due to shading, cell damage, or mismatch, potentially reducing performance and shortening module lifespan.

I — Inverter
The inverter is the heart of the solar power system, converting DC electricity into usable AC power.
Modern inverters also provide grid synchronization, monitoring, and protection functions.

J — Junction Box
Located on the back of the module, the junction box houses DC terminals and bypass diodes, protecting cells from overheating and enabling safe electrical connections.

K — kW vs kWh
• kW (kilowatt): Instantaneous power rating
• kWh (kilowatt-hour): Total energy produced or consumed over time

L — Load
Electrical devices or equipment that consume power, such as lighting systems, motors, appliances, and industrial equipment.

M — MPPT (Maximum Power Point Tracking)
An advanced control algorithm used in inverters and charge controllers to continuously extract the maximum available power from solar panels by adjusting operating voltage and current.

N — Temperature Effect (NTC Behavior)
As module temperature increases, the output voltage decreases, which may reduce overall system power output.

O — Operation & Maintenance (O&M)
Regular maintenance ensures system performance and includes:
• Panel cleaning
• Electrical inspection
• Performance monitoring
• Preventive maintenance

P — Protection Systems
Essential protection components include:
• DC/AC isolators

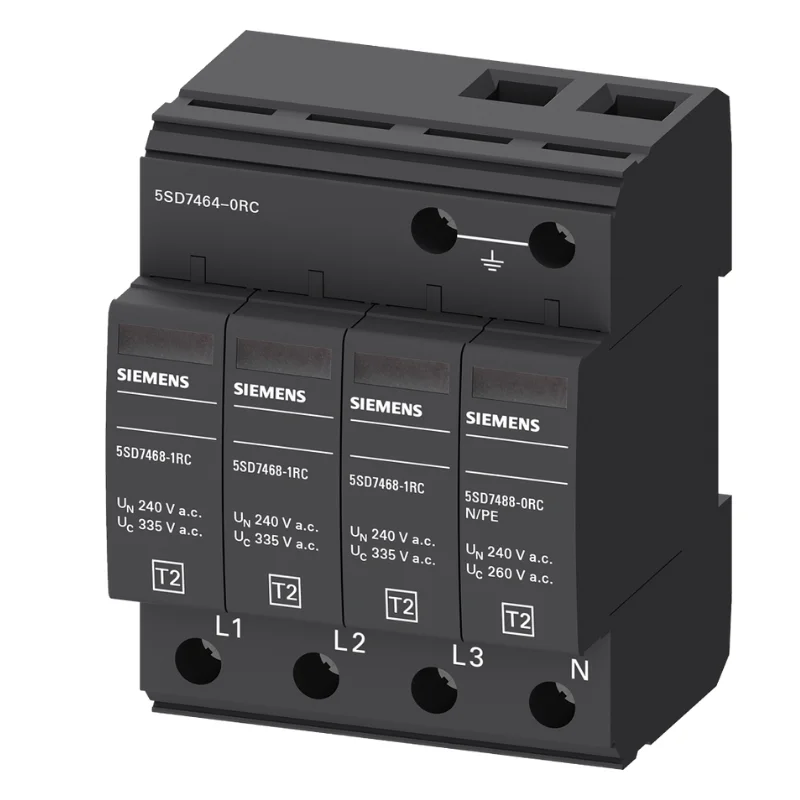

• Surge Protection Devices (SPD)
• Proper earthing and grounding systems
These protect the system from faults, lightning, and electrical surges.

Q — Quality Losses
Real-world system losses occur due to factors such as:
• Dust accumulation
• Cable resistance
• Inverter conversion losses
• Temperature-related losses

R — Rooftop vs Ground-Mounted Systems
Solar systems may be installed on rooftops or ground-mounted structures, depending on space availability, shading conditions, land use, and project scale.

S — String
A string is a series connection of solar modules feeding power to the inverter.

T — Tilt Angle
The inclination angle of solar panels is optimized based on geographic location to maximize annual solar energy yield.

U — Utility Meter (Net Metering)
A bi-directional meter measures energy imported from and exported to the grid under net metering policies.

V — Voltage
System voltage must remain within the operating range of the inverter to ensure safe and efficient operation.

W — Watt-Peak (Wp)
The rated power of a solar module measured under Standard Test Conditions (STC):
• Irradiance: 1000 W/m²
• Cell temperature: 25°C
• Air mass: AM 1.5

X — X-Factor (Reliability)
The long-term reliability of a solar plant depends on:
• System design quality
• Component selection
• Installation standards
• Maintenance practices

Y — Yield
The total electrical energy produced by the system, usually measured in kilowatt-hours (kWh) over a specific period.

Z — Zero Emissions
Solar power generation produces clean, renewable, and silent electricity with zero operational carbon emissions, making it a key solution for sustainable energy.

🔎 In essence:
Solar power is not just about installing panels—it is a complete power engineering ecosystem that integrates electrical design, system protection, performance optimization, and grid interaction.

#SolarPower #SolarEnergy #RenewableEnergy #Photovoltaic #PVSystem
#SolarEngineering #ElectricalEngineering #GreenEnergy #CleanEnergy #SustainableEnergy
#NetMetering #MPPT #InverterTechnology #EnergyEfficiency #SolarDesign
#PowerEngineering #SolarInstallation #EnergyManagement #ZeroEmission
#EngineeringLife #TechEducation #SolarIndustry #EnergyFuture #STC #SolarYield

https://www.youtube.com/channel/UC4_D50vMu1wbQrPaLFYo6Eg https://www.youtube.com/channel/UC4_D50vMu1wbQrPaLFYo6Eg RRB JE, SSC AE/JE UPSSSC JE, SSC JE, CIVIL ENGINEERING MCQs, ELECTICAL ENGINEERING MCQs, preavious year quesion papers, dmrc, lmrc, drdo,rrb ntpc, ntpc, pgcil, dsssb, states board, GATE IES EE, ESE, ECE, ME, CE, IT & CS EXAM MATERIALS & OLD PAPERS Electrical Engineering https://t.me/pravendrarajpoot Daily news & current affairs in hindi & english fully updated Daily current affairs https://t.me/newsdailypkr Engineering Discussion group for your upcoming exams, you can ask your any query regarding your problem,👇👇👇 https://t.me/joinchat/JObxeA7n6S4qvnegrGhTgA PKR ELECTRICAL ENGINEERING I am sure this is the best place for you guys subscribe and get success IF YOU WANT TO JOIN ME ON TELEGRAM FOR PDF @newsdailypkr AE/JE EE, ESE, ECE, ME, CE, IT & CS EXAM MATERIALS & OLD PAPERS Electrical Engineering https://t.me/pravendrarajpoot facebook page:- Pravendra Kumar Rajpoot https://t.me/newsdailypkr https://chat.whatsapp.com/5AS7dNFTP4H4vVsiWsqHrT https://t.me/srk50 https://t.me/pravendrarajpoot https://t.me/joinchat/JObxeA7n6S4qvnegrGhTgA https://t.me/pravendrarajpoot Daily news & current affairs in hindi & english fully updated Daily current affairs https://t.me/newsdailypkr Engineering Discussion group for your upcoming exams, you can ask your any query regarding your problem,👇👇👇 https://t.me/joinchat/JObxeA7n6S4qvnegrGhTgA PKR ELECTRICAL ENGINEERING I am sure this is the best place for you guys subscribe and get success IF YOU WANT TO JOIN ME ON TELEGRAM FOR PDF @newsdailypkr AE/JE EE, ESE, ECE, ME, CE, IT & CS EXAM MATERIALS & OLD PAPERS Electrical Engineering https://t.me/pravendrarajpoot facebook page:- Pravendra Kumar Rajpoot https://t.me/newsdailypkr https://chat.whatsapp.com/5AS7dNFTP4H4vVsiWsqHrT https://t.me/srk50 https://t.me/pravendrarajpoot https://t.me/joinchat/JObxeA7n6S4qvnegrGhTgA

Why a Preliminary Site Visit Is Critical Before Installing a Solar PV System

🔎 Why a Preliminary Site Visit Is Critical Before Installing a Solar PV System

A preliminary site visit is one of the most important steps before planning and installing a solar photovoltaic (PV) system, especially for utility-scale or large commercial installations.

A detailed site assessment helps engineers identify technical challenges early, optimize system design, and avoid costly modifications during construction.

Below are some key factors that should be carefully evaluated during the site visit:

1️⃣ Site Stability and Structural Suitability

The site must be assessed to ensure it can safely support the weight of solar modules, mounting structures, and associated equipment.

Areas with unstable soil, loose sand, or weak bedrock may require additional engineering solutions such as:
• Deep foundations or pile structures
• Soil stabilization or compaction
• Ground grading and leveling

Proper geotechnical evaluation helps ensure long-term structural stability of the solar installation.

2️⃣ Land Slope and Topography

The slope and terrain of the land significantly affect installation complexity and project cost.

• Flat or gently sloping land is ideal for solar installations.
• Steep slopes may require extensive earthwork, special mounting systems, or additional structural supports.

Topographical surveys help optimize panel layout, drainage planning, and energy yield.

3️⃣ Accessibility and Logistics

The project site should allow easy access for construction equipment, delivery vehicles, and maintenance teams.

Considerations include:
• Road connectivity for transporting solar modules and heavy equipment
• Adequate space for cranes, installation machinery, and material storage
• Long-term accessibility for inspection and maintenance activities

Difficult terrain or remote locations may significantly increase logistics and installation costs.

4️⃣ Shading Analysis

Solar panels require maximum exposure to sunlight to operate efficiently.

During the site visit, engineers must check for potential shading sources, such as:
• Trees and vegetation
• Nearby buildings or structures
• Transmission towers or infrastructure
• Hills or natural obstructions

Even partial shading can reduce energy generation and impact system performance.

5️⃣ Environmental Conditions

The surrounding environment can affect the long-term performance and maintenance requirements of the solar system.

Factors to assess include:
• High levels of dust or airborne particles
• Industrial pollution or chemical exposure
• Coastal saltwater conditions that may cause corrosion
• Wildlife or bird activity

These conditions may require special module coatings, corrosion protection, or more frequent cleaning schedules.

6️⃣ Ground and Soil Conditions

A thorough evaluation of the soil characteristics and ground conditions is essential for proper foundation design.

Important aspects include:
• Soil type (clay, sand, rock, etc.)
• Load-bearing capacity
• Drainage conditions and flood risk
• Presence of underground utilities such as water lines, gas pipelines, or communication cables

Geotechnical testing helps determine the most suitable foundation system for mounting structures.

7️⃣ Electrical Infrastructure and Grid Connectivity

Another critical aspect of the site visit is evaluating nearby electrical infrastructure.

This includes:
• Distance to the nearest substation or grid connection point
• Available grid capacity for power evacuation
• Transmission or distribution line access
• Potential need for new substations or transmission upgrades

Efficient grid connectivity is essential for transmitting the generated solar power to the utility network.

⚡ In Summary

A comprehensive preliminary site visit helps ensure that a solar project is technically feasible, cost-effective, and optimized for long-term performance.

Identifying potential challenges early allows project developers and EPC contractors to improve design decisions, reduce risks, and ensure smoother project execution.

#SolarEnergy
#SolarPV
#RenewableEnergy
#SolarEngineering
#EnergyInfrastructure
#CleanEnergy
#SolarProjects
#SolarInstallation

Underground Cable Failures: What Do the Data and Field Experience Show?

Underground Cable Failures: What Do the Data and Field Experience Show?

In many transmission and substation projects, the underground cable itself is rarely the weakest component.

Industry reliability studies indicate that approximately 55–70% of underground cable failures are related to cable accessories, particularly joints and terminations, rather than the cable conductor or insulation.

Why Do Accessories Fail More Often?

Unlike cables, which are manufactured and tested under strict factory-controlled conditions, accessories such as joints and terminations are assembled and installed on-site. Field conditions are often less controlled, and even small installation errors can significantly affect long-term reliability.

Common Causes Observed in EPC Projects

Some of the most frequent issues encountered during underground cable installations include:

• Improper cable preparation – Incorrect stripping of insulation, sheath, or semi-conducting layers can damage the cable or affect insulation integrity.

• Contamination during installation – Dust, moisture, or foreign particles entering the joint area can weaken insulation performance.

• Moisture ingress – Inadequate sealing may allow water to enter the joint or termination, leading to insulation breakdown over time.

• Incorrect stress control positioning – Improper placement of stress control components can create uneven electric fields and partial discharges.

• Poor sealing of joints and terminations – Inadequate sealing materials or incorrect installation methods can compromise the accessory’s reliability.

The Challenge of Repair Time

Another major concern with underground cable systems is the time required to locate and repair faults.

Typical utility experience shows:

• Fault location: approximately 6–24 hours depending on system complexity
• Excavation and repair: typically 1–5 days depending on site conditions
• Total outage impact: often 5–10 times higher than overhead line faults, due to extended downtime and repair logistics

Why Quality Installation Matters

Because of these challenges, many utilities and EPC contractors now place greater emphasis on accessory quality, proper installation practices, and skilled workmanship during underground cable projects.

Even when the cable itself is highly reliable, the overall system performance often depends on the quality of the joint and termination.

Discussion for EPC Professionals

For engineers, supervisors, and EPC teams involved in underground cable installation:

What is the most common issue you encounter during underground cable projects?

#UndergroundCables #PowerTransmission #SubstationEngineering #ElectricalEngineering #EPCProjects #PowerInfrastructure

Potential Transformer (PT)

A Potential Transformer (PT), also known as a Voltage Transformer (VT), is an electromagnetic device used in electrical substations to step down high system voltage to a lower, standardized, and measurable value. The reduced voltage is typically 110 V or 63.5 V, which can safely be used by measuring instruments, protection relays, and monitoring equipment.

Key Features and Working Principle

Electromagnetic Induction Principle
A PT operates on the principle of electromagnetic induction, similar to a conventional power transformer. The primary winding is connected to the high-voltage system, and the secondary winding produces a proportionally reduced voltage.
Voltage Measurement and Protection
PTs provide accurate voltage signals for system monitoring, metering, and protection schemes.
Accurate Secondary Output
The secondary voltage is supplied to various devices such as:
- Energy meters
- Protective relays
- Indicating instruments (voltmeters, synchroscopes, etc.)
Common Applications
PTs are widely used in medium-voltage systems, such as 11 kV and 33 kV substations, where they provide reliable and precise voltage measurement.
Design Characteristics
- Simple and robust construction
- High accuracy for metering and protection
- Electrical isolation between high-voltage systems and measuring instruments

Capacitive Voltage Transformer (CVT)

A Capacitive Voltage Transformer (CVT) is a specialized voltage transformer used in high-voltage and extra-high-voltage (EHV) substations. It steps down very high transmission voltages to a measurable level using a capacitive voltage divider combined with an electromagnetic unit.

Key Features and Working Principle

Capacitive Voltage Division
The primary voltage is first reduced through a series capacitor network, forming a capacitive voltage divider. The reduced voltage is then further stepped down by an electromagnetic transformer to a standard secondary voltage.
Suitable for High and Extra-High Voltage Systems
CVTs are commonly used in 132 kV, 220 kV, 400 kV, and higher voltage transmission systems, where conventional PTs become impractical due to insulation and cost considerations.
Metering and Protection Applications
CVTs provide voltage signals required for:
- Energy metering
- Protective relays
- System monitoring and control
Carrier Communication Capability
One important advantage of CVTs is that they can be integrated with Power Line Carrier Communication (PLCC) systems, enabling communication signals to be transmitted over transmission lines.
Design Advantages
- Economical for high-voltage applications
- Suitable for long transmission systems
- Provides both voltage measurement and communication coupling

Summary

Potential Transformers (PTs) are typically used in medium-voltage substations (11 kV – 33 kV) and operate purely on electromagnetic induction.
Capacitive Voltage Transformers (CVTs) are used in high and extra-high-voltage systems (132 kV and above) and utilize capacitive voltage division combined with electromagnetic transformation.

Both PTs and CVTs play a critical role in accurate voltage measurement, system protection, and safe operation of electrical power systems.

Does Dust Affect Solar Panel Performance?

☀️ Does Dust Affect Solar Panel Performance?

Yes — it certainly can.

Solar panels produce electricity by capturing sunlight. When dust, sand, bird droppings, or other debris settle on the surface, they act like a thin layer of shading. This reduces the amount of sunlight reaching the solar cells, which can lower energy output.

🔎 Why Does Dust Reduce Performance?
The top layer of a solar panel is made of high-transparency glass designed to allow maximum sunlight to pass through. When dust accumulates on this surface, it can:
• Block or scatter sunlight
• Create partial shading on certain cells
• Cause localized heating (hot spots)

Over time, these effects may reduce the panel’s efficiency and impact stable performance.

🌧 Can Rain Clean Solar Panels?
Rain can wash away loose dust and light dirt. However, stubborn contaminants such as bird droppings, pollen, or oily residue usually remain and may require manual cleaning.

🧼 Is Regular Cleaning Necessary?
The need for cleaning depends largely on the installation environment. Panels located in:
• Dust-prone areas
• Industrial zones
• Regions with heavy bird activity
• Areas with low rainfall

are more likely to accumulate dirt and should be inspected and cleaned periodically.

✅ Best Practices for Cleaning Solar Panels
• Clean panels during early morning or late evening when temperatures are lower
• Use soft cloths, sponges, or non-abrasive tools
• Use clean water or mild cleaning solutions if needed
• Avoid harsh chemicals and abrasive materials that may damage the glass surface

🌿 In Summary
Dust does not stop solar panels from working, but excessive buildup can reduce their ability to capture sunlight efficiently. Routine inspection and gentle cleaning help maintain optimal performance and ensure consistent energy generation.

#SolarEnergy #SolarPanels #SolarMaintenance #RenewableEnergy #CleanEnergy

Wednesday, March 4, 2026

Solar energy is often perceived as simple: sunlight hits a panel, electricity flows, and lights turn on. In reality, a solar power system is an engineered chain of energy transformations, controls, and storage processes. The image above illustrates the five critical stages that convert solar irradiation into usable electrical power. Understanding these stages is essential for engineers, sustainability professionals, policymakers, and even homeowners investing in photovoltaic (PV) systems. Let us break down the entire journey—from radiation to reliable energy services.

Solar energy is often perceived as simple: sunlight hits a panel, electricity flows, and lights turn on. In reality, a solar power system is an engineered chain of energy transformations, controls, and storage processes. The image above illustrates the five critical stages that convert solar irradiation into usable electrical power.

Understanding these stages is essential for engineers, sustainability professionals, policymakers, and even homeowners investing in photovoltaic (PV) systems. Let us break down the entire journey—from radiation to reliable energy services.

Stage 1: Solar Energy – The Primary Resource

Everything begins with solar irradiance, the power per unit area received from the sun in the form of electromagnetic radiation.

Key characteristics:

Variable and uncontrollable
Dependent on weather conditions
Influenced by time of day and season
Affected by shading and geographic location

Unlike fossil fuels, solar energy does not require extraction or transportation. However, its intermittency creates engineering challenges. The system must therefore be designed to handle fluctuations in intensity and duration.

The first efficiency barrier occurs here: atmospheric conditions and panel orientation determine how much radiation actually reaches the photovoltaic surface.

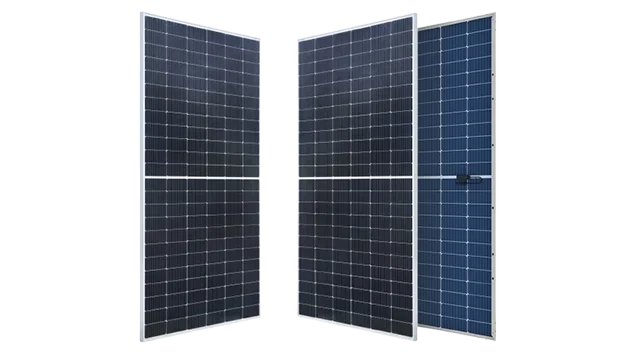

Stage 2: PV Generation – Converting Light to DC Electricity

The PV array converts sunlight directly into DC electricity using semiconductor materials (commonly crystalline silicon).

Core functions:

Photons strike the solar cells
Electrons are excited and create current
Direct current (DC) electricity is generated

However, this stage is not perfectly efficient. Losses occur due to:

Temperature rise (efficiency decreases at high temperature)
Wiring resistance losses
Mismatch losses between modules
Dust and soiling

PV panels typically operate between 15–23% efficiency depending on technology. Therefore, proper system sizing, module selection, and thermal management are critical.

At this point, the energy exists as DC power, which cannot directly power most household or industrial appliances.

Stage 3: Power Electronics – Control and Conversion

Power electronics act as the “brain” of the solar system.

This stage includes:

MPPT (Maximum Power Point Tracking)
DC–AC conversion (inverters)
Voltage, current, and frequency regulation

Why MPPT Matters

Solar panels do not operate at constant voltage or current. The MPPT algorithm continuously adjusts operating conditions to extract maximum available power from the array.

Inverter Function

Most electrical loads and grids operate on AC power. Therefore:

DC from panels → converted to AC
Frequency synchronized (e.g., 50 Hz in India)
Voltage stabilized

Losses occur during conversion, typically 2–5% depending on inverter efficiency.

Without power electronics, solar electricity would be unstable and incompatible with the grid.

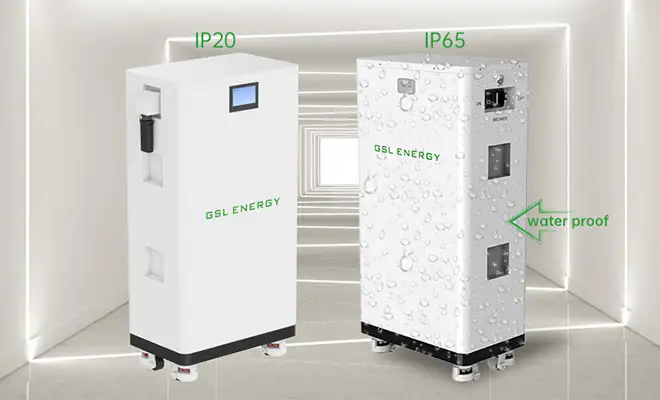

Stage 4: Battery Storage – Managing the Day-Night Mismatch

Solar generation peaks during the day, while demand often peaks in the evening. Battery storage solves this temporal mismatch.

Key roles:

Store excess energy during daytime
Supply energy during night or low irradiation
Improve reliability
Reduce grid dependency

However, battery systems introduce their own inefficiencies:

Charging losses
Discharging losses
Chemical conversion losses
Degradation over lifecycle

Round-trip efficiency of lithium-ion batteries typically ranges between 85–95%.

Battery systems are especially critical in:

Off-grid installations
Mini-grids
Rural electrification
Areas with unstable grid supply

In grid-tied systems without storage, surplus power is exported to the grid instead.

Stage 5: End Use – Delivering Useful Energy Services

The final stage is where electricity provides real value.

Electrical loads may include:

Lighting systems
HVAC systems
Industrial motors
Electronics
Pumps and appliances

Losses at this stage can occur due to:

Distribution wiring resistance
Appliance inefficiency
Standby power consumption

Energy efficiency measures at the consumption stage significantly reduce the required solar capacity. A more efficient load profile reduces capital expenditure on PV and storage.

Understanding the Complete System as an Energy Chain

The five stages form a continuous value chain:

Solar Irradiance → DC Generation → Power Conversion → Energy Storage → Useful Services

At each stage:

Energy changes form
Losses occur
Engineering decisions impact performance

If each stage has 95% efficiency, the overall system efficiency becomes:

0.95 × 0.95 × 0.95 × 0.95 ≈ 81%

This demonstrates why system-level optimization is more important than focusing only on panel efficiency.

Engineering Considerations Across All Stages

A well-designed solar system requires:

Site assessment and irradiation study
Proper tilt and orientation optimization
Thermal management planning
Efficient inverter sizing
Battery chemistry selection
Load profiling and demand analysis

Ignoring any stage reduces performance and economic returns.

Why This Framework Matters

This five-stage model is useful for:

Engineering students understanding energy systems
Policymakers designing renewable policies
Investors evaluating solar projects
Technicians troubleshooting performance issues
Sustainability consultants optimizing building systems

It shifts thinking from “solar panel installation” to “integrated energy system design.”

Final Perspective

Solar power is not just about panels. It is an interconnected system where physics, electronics, chemistry, and electrical engineering converge.

The real innovation lies not in capturing sunlight—but in managing it intelligently across the entire energy chain.

When designed correctly, solar systems:

Reduce carbon emissions
Improve energy independence
Lower operating costs
Enhance grid stability

From irradiation to illumination, the journey of solar energy is a story of transformation, control, and optimization.

kW vs kWh: The Difference Every Solar & Electrical Engineer Must Understand ⚡

kW vs kWh: The Difference Every Solar & Electrical Engineer Must Understand ⚡

In electrical engineering and renewable energy systems, few concepts are misunderstood as often as power (kW) and energy (kWh).

At first glance they look similar, but they represent two completely different aspects of electricity. Understanding this distinction is essential for solar plant design, inverter selection, battery sizing, load calculations, and energy planning.

If you work in solar PV, mini-grids, EV charging, or building energy systems, mastering this concept is fundamental.

Let’s break it down clearly.

Power (kW): The Rate of Energy Use

Power represents the instantaneous rate at which electricity is produced or consumed.

It answers the question:

“How fast is energy being used right now?”

Power is measured in:

Watts (W)
Kilowatts (kW)
(1 kW = 1000 W)

In electrical systems, power can be expressed as:

P = V × I

Where:

V = Voltage
I = Current

Power determines the capacity requirements of electrical equipment, including:

Inverter sizing
Cable thickness

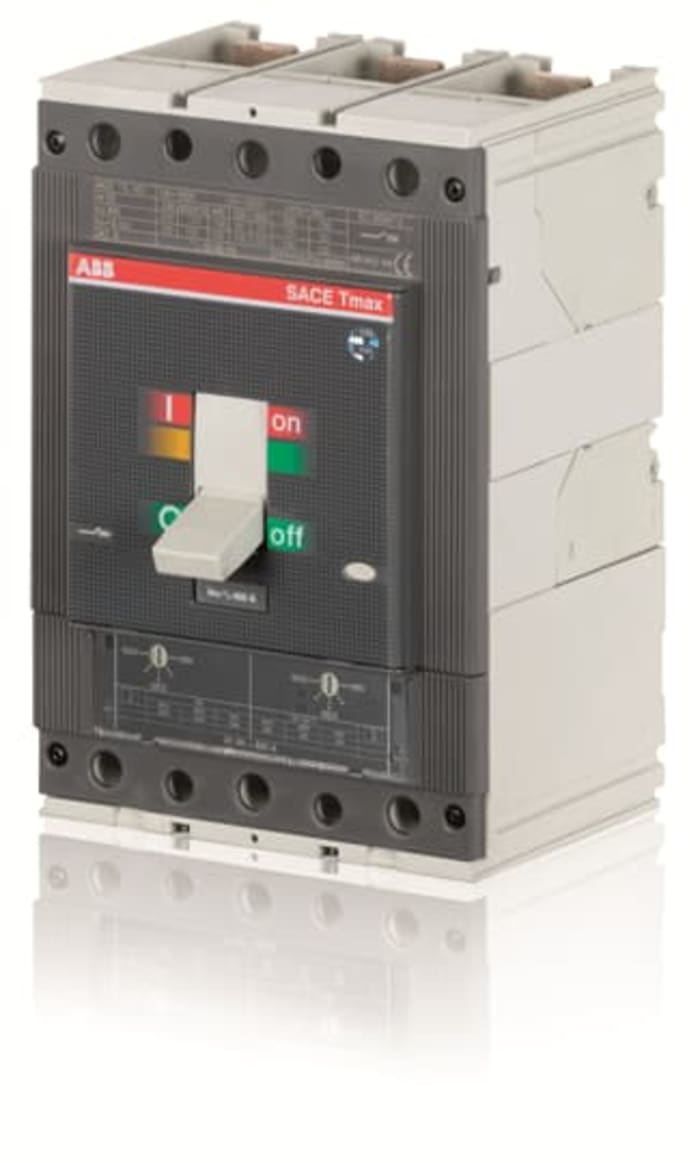

Breaker rating
Transformer capacity

Example

If a motor is rated at:

5 kW

This means the motor consumes energy at a rate of 5 kilowatts while operating at full load.

But it does not tell you how long it operates.
For that, we need to look at energy.

Energy (kWh): Total Electricity Used Over Time

Energy represents the total amount of electricity consumed over a period of time.

It answers the question:

“How much electricity was used over time?”

Energy is measured in:

Watt-hours (Wh)
Kilowatt-hours (kWh)

The relationship between power and energy is simple:

Energy = Power × Time

Example

If:

A 2 kW heater runs for 3 hours

Energy consumed:

2 × 3 = 6 kWh

Energy determines key design and economic factors such as:

Electricity bills
Battery capacity
Solar plant sizing
Daily energy demand calculations

The Critical Difference

The easiest way to understand it:

Power = Speed
Energy = Quantity

A helpful analogy:

Power → Speed of a car (km/h)
Energy → Total distance travelled (km)

You can drive very fast for a short time and cover little distance.

Similarly:

A high-power motor running for 10 minutes may consume less energy than a small light running all night.

Why This Matters in Solar System Design

Confusing kW and kWh can lead to serious design mistakes in renewable energy systems.

1️⃣ Inverter Sizing Depends on Power (kW)

If the peak load of a facility is:

8 kW

Your inverter must be able to deliver at least 8 kW instantly.

Even if daily energy consumption is small, the inverter must support peak demand.

2️⃣ Battery Sizing Depends on Energy (kWh)

If a home consumes:

20 kWh per day

The battery bank must store around 20 kWh of usable energy to supply that demand.

Battery capacity is always expressed in kWh, not kW.

3️⃣ Solar Panel Sizing Depends on Energy Demand

If daily consumption is:

30 kWh

The PV system must generate 30 kWh per day, accounting for:

Solar irradiation
System losses
Temperature effects
Inverter efficiency

Understanding the Power–Time Curve

In energy analysis graphs:

Y-axis → Power (kW)
X-axis → Time (hours)

The area under the curve represents total energy (kWh).

This principle is essential for:

Load profiling
Battery sizing
Peak-shaving analysis
Mini-grid design
Storage dispatch optimization

Mathematically:

Energy = Area under the power–time curve

Real-World Comparison

Case 1: High Power, Short Duration

Motor:

10 kW

Runs for:

0.5 hours

Energy used:

10 × 0.5 = 5 kWh

Case 2: Low Power, Long Duration

Lighting system:

1 kW

Runs for:

8 hours

Energy used:

1 × 8 = 8 kWh

Despite lower power, the lighting system consumes more total energy.

Implications for Electricity Bills

Electricity bills are based on:

Energy consumption (kWh)

Not:

Power rating (kW)

Your bill reflects how much energy you used over time, not how powerful your appliances are at a single moment.

However, commercial and industrial consumers may also face demand charges based on peak kW usage.

Where This Knowledge Is Applied

Understanding the difference between kW and kWh is essential in:

Rooftop solar design
Mini-grid feasibility studies
Battery energy storage systems (BESS)
EV charging infrastructure
Load flow analysis
Grid interconnection planning

It also plays a role in:

Demand response programs
Time-of-use tariffs
Smart grid optimization

A Simple Engineering Checklist

Whenever designing an electrical or solar system, always ask two separate questions:

1️⃣ What is the maximum power demand (kW)?
2️⃣ What is the total daily energy requirement (kWh)?

Treating these as the same can lead to:

Oversized systems → unnecessary capital cost
Undersized systems → inverter tripping or battery depletion

Final Takeaway

Power (kW) tells you how fast electricity is being used.

Energy (kWh) tells you how much electricity was used over time.

Power determines hardware capacity.
Energy determines storage and generation needs.

Understanding this difference unlocks the foundation of electrical engineering, solar system design, and modern energy economics.

In renewable energy systems, clarity between kW and kWh isn’t optional —
it’s essential. ⚡

Voltage, Current, and Power: The Core of Electrical Engineering

Voltage, Current, and Power: The Core of Electrical Engineering ⚡

Electricity often feels abstract because we cannot see it directly. Yet every electrical system—from a small solar inverter to a national power grid—operates based on a simple but powerful relationship between voltage, current, and power.

Understanding these three quantities is fundamental for anyone working in solar energy, power systems, mini-grids, industrial electrification, or grid integration.

Let’s break it down in a clear and practical engineering perspective.

1️⃣ Voltage — The Electrical Pressure

Voltage (V) is the electrical potential difference between two points. In practical terms, it is the force that pushes electric charge through a conductor.

A common engineering analogy is water pressure in a pipe:

Higher water pressure → stronger push
Higher voltage → stronger electrical push

However, voltage alone does not mean energy is being delivered. It simply provides the potential for current to flow. If the circuit is open, voltage may exist but no useful work occurs.

Typical voltage levels in power systems:

Residential supply in India: 230 V (single phase)
Industrial supply: 415 V (three phase)

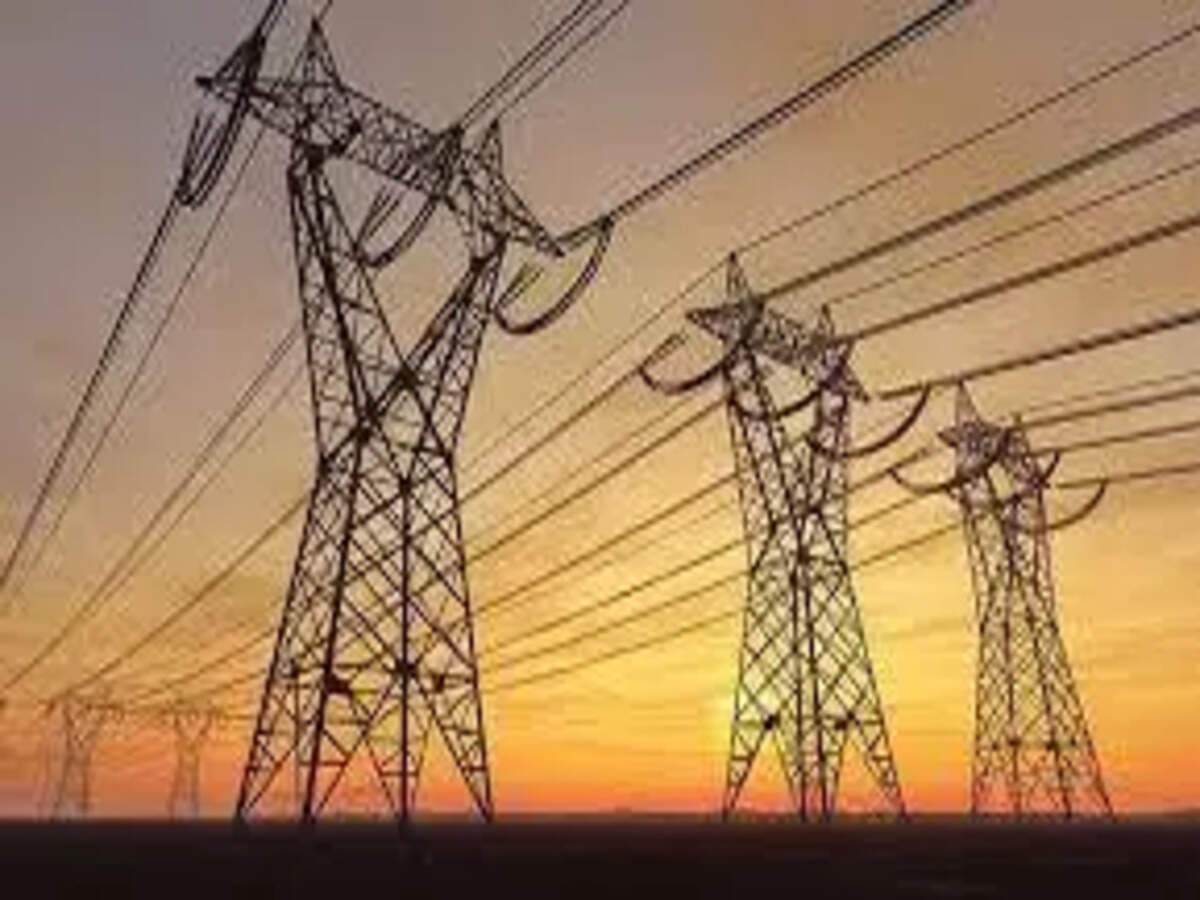

Transmission systems: tens to hundreds of kV for efficient long-distance power transfer

Voltage is measured in volts (V) using a voltmeter connected in parallel with the circuit element.

2️⃣ Current — The Flow of Electric Charge

Current (I) is the rate at which electric charge flows through a conductor, measured in amperes (A).

Continuing the water analogy:

Voltage → water pressure
Current → water flow rate

Mathematically, current represents:

Charge per unit time

Without current, no energy transfer takes place, even if voltage is present.

For example:

A disconnected battery still has voltage.
When connected to a load, current flows.
Only then does the system deliver electrical power.

Current is measured using an ammeter connected in series with the circuit.

3️⃣ Power — The Useful Electrical Work

Power (P) represents the rate at which electrical energy is converted into useful work.

It is calculated using the fundamental equation:

P = V × I

Where:

P = Power (Watts)
V = Voltage (Volts)
I = Current (Amperes)

This equation is one of the most important relationships in electrical engineering.

If:

Voltage increases while current stays constant → power increases
Current increases while voltage stays constant → power increases
Both increase → power increases significantly

Power represents real, useful output, such as:

A glowing light bulb
A rotating motor
A running water pump
A charging battery

Without power, an electrical system performs no useful function.

The Water System Analogy

A practical way to visualize this relationship is through a water system comparison:

Electrical Quantity	Water System Equivalent
Voltage	Water pressure
Current	Flow rate
Power	Water turning a wheel (useful work)

For example:

High pressure but no flow → the wheel does not rotate
High flow but no pressure → insufficient force
Pressure × Flow = Useful mechanical power

Similarly in electricity:

Voltage × Current = Electrical Power

Practical Engineering Example

Let’s apply the formula.

Example 1

A solar inverter outputs:

Voltage = 230 V
Current = 10 A

Power = 230 × 10 = 2300 W (2.3 kW)

Example 2

If current increases to 20 A:

Power = 230 × 20 = 4600 W (4.6 kW)

This is why current levels strongly influence system design.

Higher current leads to:

Increased heat generation
Greater resistive losses (I²R losses)
Requirement for larger conductors

Why This Relationship Matters in Solar and Power Systems

Understanding voltage, current, and power is essential in renewable energy engineering.

Inverter Sizing

Inverters must safely handle maximum DC voltage and current limits.

Cable Selection

Undersized cables cause overheating, energy loss, and voltage drop.

Battery System Design

Battery voltage defines system architecture:

12 V / 24 V (small systems)
48 V (commercial solar)
High-voltage batteries for utility-scale systems

Transformer Operation

Transformers step voltage up or down to optimize current and minimize transmission losses.

Power Quality Analysis

Voltage fluctuations directly affect system stability and equipment performance.

The Physics Behind Power

Power represents energy per unit time:

1 Watt = 1 Joule per second

For DC systems:

P = V × I

For AC systems:

P = V × I × Power Factor

Power factor accounts for the phase difference between voltage and current, which is especially important in inductive loads like motors, compressors, and transformers.

Common Misconceptions

Misconception 1: High voltage alone is dangerous
Reality: Risk depends on both voltage and current.

Misconception 2: Current alone defines power
Reality: Power depends on both voltage and current.

Misconception 3: Increasing voltage increases electricity consumption
Reality: Power consumption depends on load characteristics, not just voltage.

Integrated Understanding

The electrical system can be understood in three logical stages:

Voltage → The push
Current → The movement of charge
Power → The useful result

Only when these three interact does electricity perform meaningful work.

This principle forms the foundation of:

Electrical engineering education
Solar installation training
Mini-grid design
Industrial power management

Final Takeaway

Voltage creates the push.
Current represents the flow.
Power is the useful result of their interaction.

Without voltage, current cannot move.
Without current, no power is delivered.
Without power, no useful work occurs.

The simple equation P = V × I is more than just a formula—it is the backbone of electrical engineering and renewable energy systems.

And understanding it deeply leads to better system design, safer installations, and more efficient power networks. ⚡

Popular Posts

Thursday, March 5, 2026

1️⃣ Site Stability and Structural Suitability

2️⃣ Land Slope and Topography

3️⃣ Accessibility and Logistics

4️⃣ Shading Analysis

5️⃣ Environmental Conditions

6️⃣ Ground and Soil Conditions

7️⃣ Electrical Infrastructure and Grid Connectivity

Why Do Accessories Fail More Often?

Common Causes Observed in EPC Projects

The Challenge of Repair Time

Why Quality Installation Matters

Discussion for EPC Professionals

Potential Transformer (PT)

Key Features and Working Principle

Capacitive Voltage Transformer (CVT)

Key Features and Working Principle

Summary

Wednesday, March 4, 2026

Stage 1: Solar Energy – The Primary Resource

Stage 2: PV Generation – Converting Light to DC Electricity

Stage 3: Power Electronics – Control and Conversion

Why MPPT Matters

Inverter Function

Stage 4: Battery Storage – Managing the Day-Night Mismatch

Stage 5: End Use – Delivering Useful Energy Services

Understanding the Complete System as an Energy Chain

Engineering Considerations Across All Stages

Why This Framework Matters

Final Perspective

Power (kW): The Rate of Energy Use

Example

Energy (kWh): Total Electricity Used Over Time

Example

The Critical Difference

Why This Matters in Solar System Design

1️⃣ Inverter Sizing Depends on Power (kW)

2️⃣ Battery Sizing Depends on Energy (kWh)

3️⃣ Solar Panel Sizing Depends on Energy Demand

Understanding the Power–Time Curve

Real-World Comparison

Case 1: High Power, Short Duration

Case 2: Low Power, Long Duration

Implications for Electricity Bills

Where This Knowledge Is Applied

A Simple Engineering Checklist

Final Takeaway

1️⃣ Voltage — The Electrical Pressure

2️⃣ Current — The Flow of Electric Charge

3️⃣ Power — The Useful Electrical Work

The Water System Analogy

Practical Engineering Example

Why This Relationship Matters in Solar and Power Systems

Inverter Sizing

Cable Selection

Battery System Design

Transformer Operation

Power Quality Analysis

The Physics Behind Power

Common Misconceptions

Integrated Understanding

Final Takeaway

Featured Post

Pages

Powering the Future: Where Electrical Engineering Meets Renewable Energy
