HT Cable Testing
Types • Purpose • Key Fundamentals Every Engineer Must Know
High Tension (HT) cables are the silent backbone of power transmission — carrying energy at 3.3 kV to 33 kV and beyond across:
✔ Power plants
✔ Substations
✔ Solar projects
✔ Industrial facilities
✔ Underground distribution networks
Before energization, one step is non-negotiable:
⚡ Comprehensive HT Cable Testing
Because one insulation failure can mean outages, safety hazards, and massive financial loss.
🔎 What is an HT Cable?
An HT (High Tension) cable is engineered to transmit high-voltage power under demanding electrical and environmental conditions.
Key Characteristics:
Voltage Ratings: 3.3 kV, 6.6 kV, 11 kV, 22 kV, 33 kV
Insulation Type: XLPE / PVC
Suitable for underground & outdoor installations
Designed to withstand:
Electrical stress
Thermal loading
Mechanical impact
Moisture & environmental exposure
❓ Why is HT Cable Testing Mandatory?
HT cable testing ensures:
✔ Insulation integrity
✔ Detection of installation defects
✔ Prevention of flashover & earth faults
✔ Compliance with IEC / IS standards
✔ Safe commissioning before energization
Testing is not a checklist activity — it is a risk prevention strategy.
🧪 Common HT Cable Tests
1️⃣ Insulation Resistance (IR) Test
Test Equipment: 5 kV / 10 kV Megger
Test Configuration:
Phase ↔ Phase
Phase ↔ Earth
Purpose:
Evaluates overall insulation condition
👉 Typical acceptable value: ≥ 1 GΩ (1000 MΩ)
Higher IR = Healthier insulation

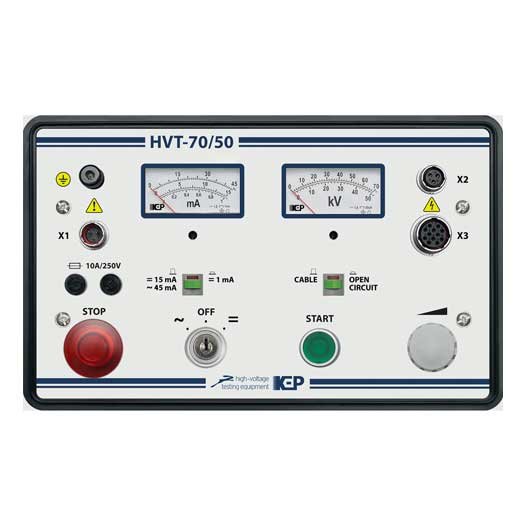

2️⃣ High Voltage (Hi-Pot) Test
High voltage applied above rated level to verify dielectric strength.
Purpose:
✔ Detect weak insulation points
✔ Confirm cable can withstand operating stress
Performed as per IEC / IS standards
3️⃣ VLF (Very Low Frequency) Test
Test Frequency: 0.1 Hz
✔ Highly recommended for XLPE cables
✔ Safer alternative to DC testing
✔ Suitable for long cable routes
✔ Validates long-term insulation performance
VLF is now industry-preferred for modern HT systems.
4️⃣ Sheath Integrity Test
DC voltage applied to outer sheath.
Purpose:
✔ Detect mechanical damage
✔ Identify moisture ingress
✔ Prevent earth leakage faults
Critical for underground cable networks.
5️⃣ Continuity & Phasing Test
✔ Verifies all cores are intact
✔ Ensures no open circuits
✔ Confirms correct R-Y-B sequence
✔ Prevents wrong termination & reverse rotation
Essential before final termination and panel connection.
⚠️ Safety is Non-Negotiable
Before and after testing:
✔ Ensure proper earthing
✔ Fully discharge cables after HV testing
✔ Use barricading & danger signage
✔ Only trained & authorized personnel should perform tests
High voltage testing without safety discipline = serious hazard.
🔑 Final Takeaway
HT cable testing is not a formality.
It is a critical safeguard against:
❌ Insulation failure
❌ Electrical accidents
❌ Forced outages
❌ Costly downtime
Proper testing ensures safe commissioning, long-term reliability, and asset protection.
