What is the Right Tilt Angle for Solar Structures in India?

(With Practical Engineering Logic + Relevant IS Standards)

One of the most underestimated design decisions in a solar power plant is tilt angle selection.

A poor tilt choice can reduce annual generation by 3–8%, directly impacting CUF, IRR, and long-term ROI.
A well-optimized tilt improves generation, reduces soiling loss, and enhances financial returns.

Solar design is not just structural engineering — it is a technical + financial optimization exercise.

---

📐 1️⃣ The Basic Engineering Rule

✅ Optimal Annual Fixed Tilt ≈ Latitude of the Location

This is the fundamental thumb rule for fixed-tilt solar systems.

Location	Approx. Latitude	Recommended Annual Tilt
Delhi	~28°	26–30°
Jaipur	~26°	24–28°
Ahmedabad	~23°	20–24°
Nagpur	~21°	18–22°
Hyderabad	~17°	15–20°
Chennai	~13°	10–15°

This provides maximum annual energy yield under fixed-mount systems.

However, real-world plant design must consider multiple additional factors.

---

📘 2️⃣ Relevant IS Codes & Standards to Consider

Tilt angle selection must align with structural safety and environmental conditions as per:

🔹 IS 875 (Part 3)

• Governs wind load calculations

• Higher tilt → higher wind pressure

• Impacts foundation & structure cost

🔹 IS 875 (Part 2)

• Load considerations during maintenance

🔹 IS 800

• Structural member design

• Deflection & stability checks

🔹 IS 3043

• Earthing design must consider structure layout

🔹 IS 1893

• Seismic load impact on higher tilt structures

🔹 MNRE Guidelines

• General compliance framework

Tilt affects wind force, structural stability, foundation size, and project cost.

---

⚙️ 3️⃣ Engineering Parameters That Modify Tilt Decision

Even if latitude is 25°, you may not use 25° tilt due to:

✅ Wind Load & Structure Cost

Higher tilt =
• Higher wind uplift
• Larger foundation
• Increased steel tonnage

✅ Land Availability

Higher tilt = larger row spacing = fewer MW per acre

✅ Row-to-Row Shadow Loss

Critical during winter (Dec–Jan).
Shadow analysis via PVSyst is mandatory before final freeze.

✅ Cleaning Feasibility

Low tilt (<10°) increases:
• Water stagnation
• Soiling accumulation

✅ Seasonal Priority

If DISCOM tariff incentivizes summer generation → Slightly lower tilt may help.

---

🌞 4️⃣ When Should You Use Trackers?

▶️ Single Axis Tracker (SAT)

✅ Best Suited for:

• Rajasthan

• Gujarat

• Madhya Pradesh

• Maharashtra

• Telangana

(High GHI regions)

✅ Advantages

• 15–22% higher generation
• Improved CUF
• Better IRR for large plants

❌ Limitations

• Higher CAPEX
• More O&M
• Moving parts → failure risk

🎯 Recommended For

Utility-scale projects (>50 MW) with strong irradiation.

---

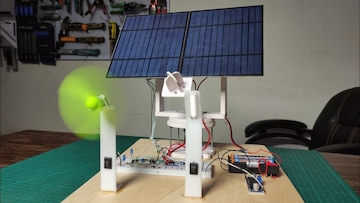

▶️ Dual Axis Tracker

✅ 30–35% possible gain (theoretical)

❌ However:

• Very high cost
• High maintenance
• Not preferred for large MW plants

Suitable For:

• Rooftop commercial
• Limited land cases
• Research applications

Rare in large ground-mounted plants in India.

---

🏗 5️⃣ Practical Field Insights (India-Specific)

✅ If Land is Abundant

→ Lower tilt (15–20°)
→ Reduced row spacing
→ Higher MW per acre

✅ If Land is Expensive

→ Optimize tilt to maximize kWh per MW

✅ Heavy Rainfall Regions (Kerala, Coastal TN)

→ Slightly higher tilt improves natural cleaning

✅ Dusty Desert Zones (Rajasthan)

→ Moderate tilt (18–22°) balances:
• Cleaning efficiency
• Yield
• Wind stability

---

🏢 6️⃣ Rooftop Installations Recommendation

▶️ If Roof Slope Exists

Use roof angle (structural feasibility permitting).

▶️ If Flat RCC Roof

Use:
• 10–15° for most Indian states
• Ensure ballast design complies with IS 875 wind load

Avoid very high tilt due to:
• Wind uplift risk
• Roof loading limitations

---

📊 7️⃣ Utility-Scale Recommendation

✔ Run PVSyst simulation
✔ Compare:

• Latitude tilt

• Optimized tilt

• Single axis tracker

✔ Evaluate:

• CUF

• IRR

• LCOE

• Payback period

In high GHI states, SAT often improves project viability.

---

📈 8️⃣ Financial Impact of Correct Tilt

Correct tilt improves:

✅ CUF (Capacity Utilization Factor)
✅ IRR
✅ Payback Period
✅ Generation Stability
✅ Long-Term Asset Value

A 1% CUF improvement in a 50 MW plant = Massive revenue difference over 25 years.

---

🔎 Final Engineering Conclusion

Tilt angle is not just a geometric decision.
It is influenced by:

• Latitude
• Wind load (IS 875)
• Structural design (IS 800)
• Seismic zone (IS 1893)
• Land economics
• Cleaning & O&M strategy
• Financial modelling

The right tilt is a balance between:

🔧 Structural Safety
⚡ Energy Yield
💰 Financial Optimization
