HT Overhead Line Insulators: Selection & Correct Usage Defines Reliability

In 11 kV / 22 kV / 33 kV overhead distribution systems, insulators do far more than just “support” the conductor.

They are responsible for:
✔ Electrical insulation
✔ Mechanical load bearing
✔ System safety
✔ Long-term reliability

Incorrect selection is one of the major root causes of HT line failures.

Let’s break it down clearly 👇

---

1️⃣ Pin Insulator (Up to 11 kV)

Application:
✔ Straight run poles
✔ Light mechanical load
✔ Short span distribution lines

Installation Method:
✔ Mounted on GI pin fixed to cross-arm
✔ Conductor tied in the top groove using binding wire
✔ Ensure adequate creepage distance

📍 Common Mistake:
Using pin insulators on angle or dead-end poles → leads to cracking due to high tensile stress.

---

2️⃣ Disc (Suspension) Insulator (11–33 kV)

Application:
✔ Straight runs with longer span
✔ Moderate to high mechanical load

Installation Method:
✔ Hung vertically from cross-arm
✔ Conductor clamped at bottom
✔ Single disc (11 kV), multiple discs for 22/33 kV

📍 Field Example:
In 33 kV lines, sag control and mechanical stability significantly improve when suspension strings replace pin types.

---

3️⃣ Strain Insulator (Angle / Dead-End Poles)

Application:
✔ Angle poles
✔ Line termination points
✔ High mechanical tension zones

Installation Method:
✔ Installed horizontally
✔ Multiple discs connected in series
✔ Dead-end clamp fixed on conductor side

📍 Site Lesson:
Using suspension insulators at angle poles often results in premature failure due to unaccounted tensile stress.

---

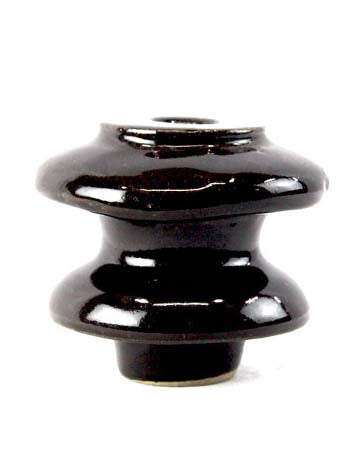

4️⃣ Shackle Insulator (LT & Short HT Spans)

Application:
✔ Service lines
✔ Short spans
✔ Minor line deviations

Installation Method:
✔ Fixed vertically or horizontally
✔ Conductor tied through center groove

📍 Note:
Not suitable for long-span HT applications.

---

5️⃣ Polymer (Composite) Insulator – Modern Practice

Application:
✔ Coastal / high pollution areas
✔ Compact line design
✔ Areas requiring lightweight solutions

Advantages:
✔ Better pollution performance
✔ Higher flashover resistance
✔ Lower maintenance
✔ Lightweight & vandal-resistant

📍 Increasingly preferred in modern 33 kV distribution networks.

---

⚠️ Critical Installation & Workmanship Checks

✔ Correct insulator type as per pole location (Straight / Angle / Dead-End)
✔ Maintain phase-to-phase and phase-to-earth clearances
✔ No cracks, glaze damage, or chipped porcelain
✔ Proper tightening of hardware fittings
✔ Ensure cross-arm earthing continuity
✔ Check alignment to avoid mechanical imbalance

---

💡 Site Reality

In practical field conditions:

👉 Wrong insulator selection causes more HT failures than conductor defects.
👉 Design determines safety.
👉 Installation determines service life.

In HT distribution engineering, small hardware decisions create long-term reliability outcomes.
