Insulation Resistance (IR) Testing of Power Transformers
A Simple Test That Prevents Million-Dollar Failures
In substations and industrial power systems, transformer reliability depends on one invisible factor:
Insulation Health.
Most transformer failures don’t occur overnight.
They develop slowly — due to moisture, contamination, aging, and insulation deterioration.
The good news?
A simple IR (Megger) Test can detect early warning signs — before catastrophic breakdown.
๐ What Is IR Testing?
IR testing measures insulation resistance between:
✔ HV ↔ LV windings
✔ HV ↔ Earth (Tank)
✔ LV ↔ Earth (Tank)
It verifies whether insulation can safely withstand operating stress.

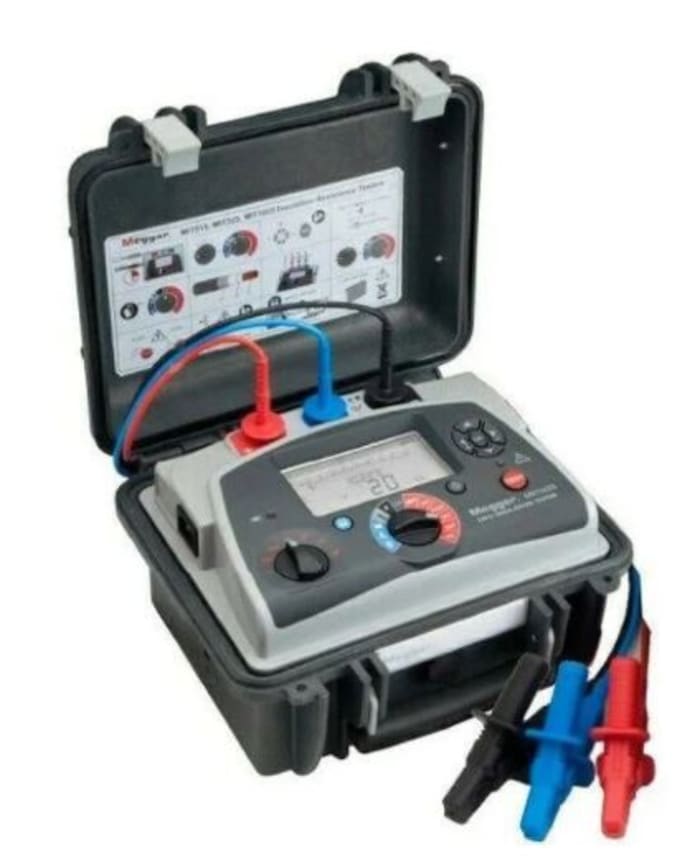

๐งฐ Test Equipment Selection
๐น 5 kV DC Megger → Typically for transformers ≤ 66 kV
๐น 10 kV DC Megger → Recommended for 132 kV & above
Choosing the correct test voltage ensures meaningful and reliable results.
๐ Typical Acceptance Values (New Transformer)
| Voltage Class | Minimum IR Value |
|---|---|
| ≤ 66 kV | > 2000 Mฮฉ |
| ≥ 132 kV | > 5000 Mฮฉ |
๐ A stable and gradually rising reading during the test indicates healthy insulation.
๐ง Polarization Index (PI)
The Real Health Indicator
PI gives deeper insight into insulation condition.
PI = IR (10 min) / IR (1 min)
Interpretation:
✔ PI > 2 → Healthy insulation
⚠ 1.5 – 2 → Acceptable (Monitor)
๐จ 1 – 1.5 → Investigate (Possible moisture/aging)
❌ < 1 → Serious insulation problem
A transformer with high IR but low PI may still have internal moisture issues.
๐ Critical Safety & Procedure Points
Before performing IR testing:
✔ Transformer must be completely de-energized & isolated
✔ Tank must be properly grounded (earthing)
✔ Use PTW, safety barriers & clearances
✔ Always discharge windings after test (Very Important ⚠)
✔ Record readings for trend analysis
Trending IR values over time is more powerful than a single test result.
๐ก Why This Test Matters
A power transformer is often the costliest asset in a substation.
Early detection through IR testing helps to:
✔ Prevent forced outages
✔ Avoid catastrophic insulation failure
✔ Reduce downtime
✔ Extend transformer life
✔ Save millions in replacement cost
๐ฏ Final Thought
Preventive maintenance is not an expense.
It is asset protection and risk management.
If you’re in EPC, commissioning, O&M, or protection, IR testing should never be treated as a routine checkbox activity — it’s a reliability safeguard.
